Showing 1–16 of 17 results

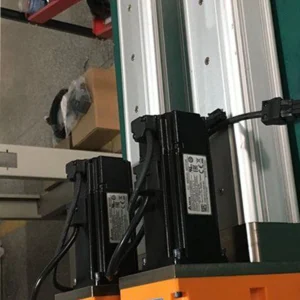

The DG134-8T-100-20 is a high-force servo motion unit configured for 80 kN rated thrust, a 100 mm effective stroke, and 55.6 mm/s rated linear speed. Its mechanical package combines a 20 mm screw lead, 1:12 reduction ratio, 5 kW motor, and front-flange mounting in a layout intended for demanding press, lifting, positioning, and automation stations.

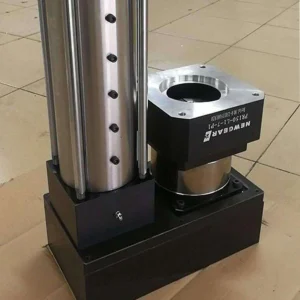

The DG220-8T-350-10S is a high-force servo motion configuration rated for 80 kN / 8 T thrust with a 350 mm effective stroke. The drivetrain combines a 10 mm screw lead, 1:3 planetary reduction, a ball-screw transmission, and a 7.5 kW Megmeet SVM-160L servo motor in a parallel motor-and-gearbox arrangement.

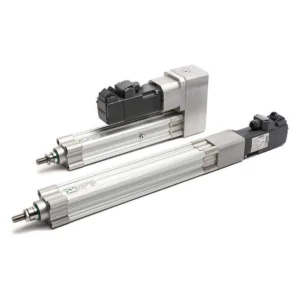

DG52-50KG-190-5 is a rod-style linear-motion unit documented for a specific 50 kg rated output, 190 mm effective stroke, and 125 mm/s travel speed. Its drawing also lists a 5 mm screw lead, 1:1 reduction ratio, 0.4 kW motor, and three switches.

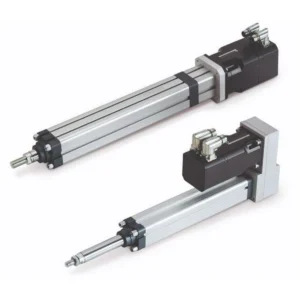

DG75-0.7T-100-5 is a parallel fold-back servo-driven linear-motion unit documented for 7,000 N rated thrust, 100 mm stroke, and 100 mm/s rated linear speed. The same local product record specifies a 5 mm screw lead, 1:2 timing-belt reduction, 0.75 kW / 220 V AC servo motor, and high-precision ball-screw transmission.

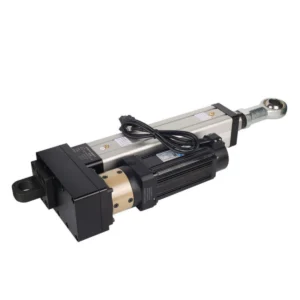

The DG95-1.5T-250-5Z is a rod-style servo linear actuator built around a ball-screw transmission for controlled industrial motion. Local project data specifies 15 kN rated thrust, 250 mm effective stroke, and 83.3 mm/s rated speed, with a 1.5 kW servo motor, 5 mm screw lead, and 1:2 reduction ratio.

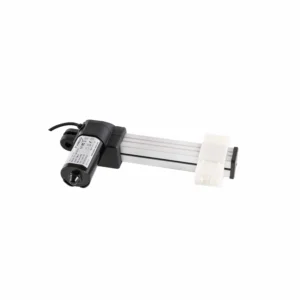

The PT04 is a DC 29V flat-push motion unit for mechanisms that need a low-profile push arrangement and a configurable travel range. The local PT04 product record lists a maximum push force of 1500 N, a published speed range of 6–35 mm/s, stroke options from 10 to 600 mm, and a 10% duty cycle.

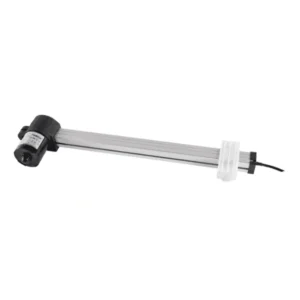

The PT06 is a DC 29V slider-style motion unit built around a moving carriage and fixed-track arrangement. The local PT06 product record lists a maximum push force of 3000 N, a published speed range of 6–40 mm/s, stroke options from 10 to 1000 mm, and a 10% duty cycle.

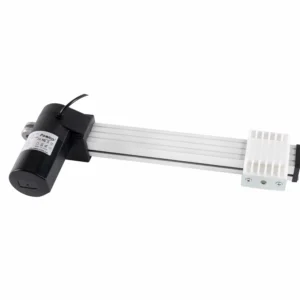

The PT09 is a 29V flat-push motion unit designed for projects that need a published push capacity up to 6,000 N, a 6–40 mm/s speed range, and stroke options from 10 to 600 mm. Its layout uses a sliding-block and track-style mechanical package rather than a conventional long inline tube, making installation geometry an important part of model selection.

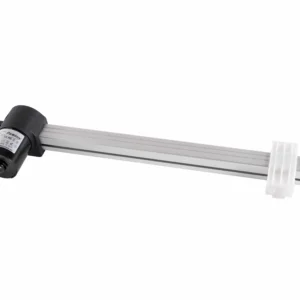

The PT16 is a 29V clevis-mount motion unit designed for projects that need a published push capacity up to 3,000 N, a 6–50 mm/s speed range, and stroke options from 10 to 1000 mm. Its mounting layout is built around a pin-connected clevis interface, so installation geometry, pivot alignment, bracket spacing, and available travel envelope are important parts of model selection.

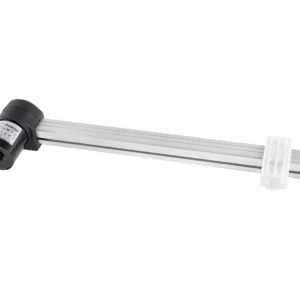

The PT18 is a slider-style motion unit designed for projects that need long linear travel while keeping the drive body in a fixed installation position. Its published configuration range covers DC 29V operation, up to 3000 N push force, 6–50 mm/s speed, and 10–1000 mm stroke. The moving carriage format makes PT18 especially relevant where the load must travel along the actuator body instead of extending from a conventional rod end.
29V push-rod linear actuator with up to 6000 N maximum push, a published 6–40 mm/s speed range, and 10–600 mm stroke options. Select by working load, loaded speed, stroke, cycle, and installation envelope.

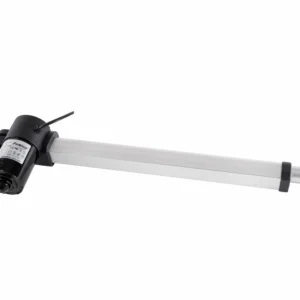

ZT06 is a 29V push-rod actuator for mechanisms that need a published maximum push of 6000 N together with selectable speed and travel ranges. Local product data lists a 6–40 mm/s speed range, a 10–600 mm stroke range, and a 10% duty-cycle figure. These values define the model’s published limits; they should not be treated as one guaranteed operating point.

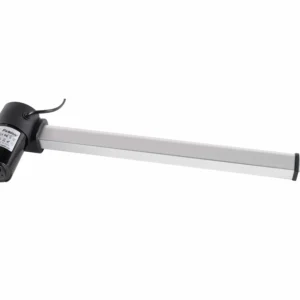

ZT09 is a 29V push-rod actuator for projects that need up to 3000 N maximum push, a published 6–40 mm/s speed range, and 10–600 mm stroke options. The local record also lists a 10% duty cycle and detailed mounting-reference dimensions. These values define the published model envelope; they should not be interpreted as one guaranteed operating point.

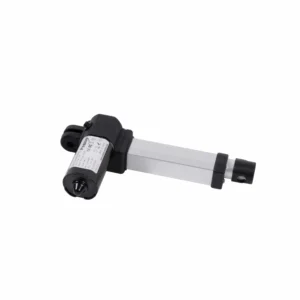

The ZT11 linear actuator is a DC29V model designed for applications that need a compact mounting envelope with published push capacity up to 2000 N, a 5–30 mm/s speed range, and stroke options from 10 to 500 mm. Its local product record also lists a 10% duty cycle and a minimum installation dimension of 130 mm.

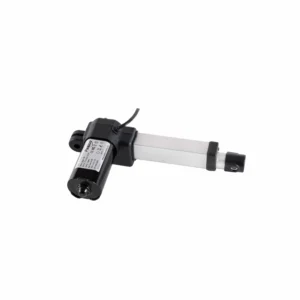

The ZT12 linear actuator is a DC29V model for mechanisms that need a wider travel envelope within the ZT platform. The local product record publishes up to 2500 N push, a 6–40 mm/s speed range, 10–1000 mm stroke options, and a 10% duty cycle. It also provides preliminary dimensional references for early packaging work.

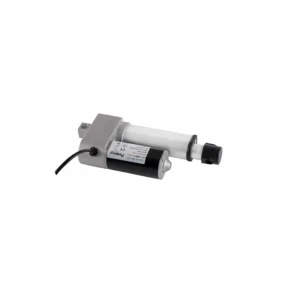

The ZT17 linear actuator is a DC29V model for applications that need slow, controlled linear movement within a published push limit of 2000 N. The local product record lists a 3–8 mm/s speed range, stroke options from 10 to 500 mm, a 10% duty cycle, and an installation dimension of at least 125 mm.
